DESCRIPTION
Specifications and Features:
- TYPE Brush Holder Assy
- HEIGHT 17
- ID 30.2
- MOUNTING HOLE SIZE M7 X 0.7
- OD 61.85
- ROTATION CW
- FEATURE 1:100% New WAIglobal
- SPECS FOR:Denso PLGR Starters
- SPECS:12 Volt
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

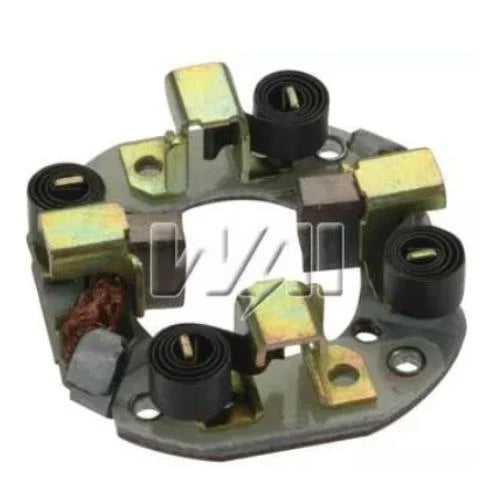

Starter Brush Holder Assy
For Asuna Acura Chevrolet Chrysler Dodge Geo Honda Isuzu Jeep Mitsubishi Pontiac Ram Suzuki Toyota Volkswagen more.
Asuna
- EL L4 1.7L 2001-2005
- Sunfire L4 1.8L 1993
Acura
- RSX L4 2.0L 2002-2006
Chevrolet
- Sprint L3 1.0L 1989-1991
Chrysler
- Pacifica V6 3.8L 2006-2008
- Town & Country V6 3.3L 2006-2010
- Town & Country V6 3.8L 2006-2010
Dodge
- Dakota V6 3.7L 2012
- Dakota V6 3.7L 2006-2010
- Dakota V8 4.7L 2006-2010
- Durango V6 3.7L 2006-2009
- Caravan V6 3.3L 2006-2007
- Grand Caravan V6 3.3L 2006-2010
- Grand Caravan V6 3.8L 2006-2010
- Ram 1500 V6 3.7L 2006-2010
- Ram 1500 V8 4.7L 2006-2010
Geo
- Metro L3 1.0L 1989-1993
- Metro L4 1.3L 1992-1994
- Storm L4 1.6L 1990-1993
Honda
- Civic L4 1.7L 2001-2005
- CR-V L4 2.0L 1997-2001
- S2000 L4 2.0L 2000-2003
- S2000 L4 2.2L 2004-2009
Isuzu
- Impulse L4 1.6L 1990-1991
- Stylus L4 1.6L 1991-1993
Jeep
- Wrangler V6 3.8L 2009-2011
Mitsubishi
- Raider V6 3.7L 2006-2009
- Raider V8 4.7L 2006-2007
Pontiac
- Firefly L3 1.0L 1989-1991
Ram
- 1500 V6 3.7L 2011-2012
- 1500 V8 4.7L 2011-2013
- Dakota V6 3.7L 2011
- Dakota V8 4.7L 2011
Suzuki
- Swift L3 1.0L 1992-1993
- Swift L4 1.3L 1989-1994
Toyota
- Echo L4 1.5L 2000-2005
- Paseo L4 1.5L 1992-1999
- Tercel L4 1.5L 1995-1998
- Yaris L4 1.5L 2006-2012
Volkswagen
- Routan V6 3.8L 2009-2010
Interchange #
Brush Holder Assy
69-8211
Lester
17142, 17203, 17252, 17253, 17679, 17679, 17679, 17680, 17680, 17703, 17746, 17803, 17805, 17806, 17845, 17886, 17949, 17950, 17957, 18413, 18414, 18417, 18417, 18418, 18426, 18427, 19615, 19749, 19786, 19791, 30429, 30580, 30765, 30982, 31362, 33285
Replaces
Denso 028510-5190, Isuzu 8-94367-795-0, Kubota 14958-63381, Suzuki 31173-60B50, Toyota 28140-70020
USED ON
Asuna (1993-2005) ** Acura (2002-2006) ** Chevrolet (1989-1991) ** Chrysler (2006-2010) ** Dodge (2006-2012) ** Geo (1989-1994) ** Honda (1997-2009) ** Isuzu (1990-1993) ** Jeep (2009-2011) ** Mitsubishi (2006-2009) ** Pontiac (1989-1991) ** Ram (2011-2013) ** Suzuki (1992-1994) ** Toyota (1992-2012) ** Volkswagen (2009-2010) **
UNIT NUMBERS
Acura 06312-PLR-505RM, 31200-PLR-A01RM, 31200-PLR-A02, 31200-PRB-A01, 31200-PRB-A01RM, DJDE4, DSDEU, DSDH9; Audi, Volkswagen 7B0-911-023; Bosch 0986029200; Chrysler 04748046AA, 04748046AB, 04748046AC, 04801256AA, 04801256AB, 04801256AC, 04801850AA, 4748046AA, 4748046AB, 4748046AC, 4801256AA, 4801256AB, 4801256AC, 4801850AA; Cub Cadet YA-119717-77010; Daihatsu Motor Co 28100-87548, 28100-87551, 28100-87551-000, 28100-87606; Denso 128000-6210, 128000-6211, 128000-6212, 128000-6420, 128000-6421, 128000-6422, 128000-7400, 128000-8530, 128000-8531, 128000-8890, 128000-8891, 128000-9470, 228000-1540, 228000-3520, 228000-4020, 228000-4030, 228000-4310, 228000-5400, 228000-5401, 228000-5590, 228000-5710, 228000-5750, 228000-5910, 228000-5911, 228000-6450, 228000-6460, 228000-6730, 228000-6740, 228000-6750, 228000-6760, 228000-7090, 228000-7091, 228000-7470, 228000-7471, 228000-7472, 228000-7480, 228000-8090, 228000-8160, 228000-8161, 228000-8330, 228000-8540, 228000-8541, 228000-8542, 228000-8550, 228000-8551, 228000-8552, 228000-9641, 428000-0010, 428000-0320, 428000-0321, 428000-1160, 428000-1161, 428000-1350, 428000-1360, 428000-1590, 428000-3050, 428000-3051, 428000-3070, 428000-3071, 428000-3072, 428000-5000, 428000-5001, 428000-6150, 428000-6640, 428000-6641; Ford 92AB-11000-KA; Ford Engineering 92AB-KA; Genie 23456; GM 91175987, 94480791, 96060305, 96062790; Honda 06312-PLR-505RM, 31200-P3F-003, 31200-P3F-A51, 31200-P3F-A511, 31200-P3F-A51RM, 31200-P3F-J01, 31200-PCX-A01, 31200-PCX-A01RM, 31200-PCX-A02, 31200-PLR-A01, 31200-PLR-A01RM, 31200-PLR-A02, 31200-PLR-A020, 31200-PRB-A01, 31200-PRB-A01RM, 31200-RBA-003, 31200RAD003, DJDE4, DS4H1, DS4HX, DS4RC, DSDEC, DSDEU, DSDH9, DSDHG, DSDHP, DSKE7; Isuzu 2911230020, 8944807910; John Deere AM809215, AM879204, AM880840, M809215, MIU800612, SE501858, TY25238; Kubota 1G023-63010, 1G023-63011, 1G069-63011, 1G194-63010, 1G194-63011, 1G194-63012, 1G194-63013, 1G194-63014, 1G194-63015, 67980-31151, 6A100-31150, 6A100-31151, 6A320-59212, K3511-81410, K3511-81411, KEARS1G194; Magneton 9-141-327; Marelli 063280055010, 063280055010, 944280187010, 944280522790, 944280522880, 944280801460; Massey Ferguson 368543M91; Mitsubishi Motors 4801-256AA; Original Reference Number 28100-11080-1, ADH21262C; Suzuki 31100-60B50, 31100-60B51, 31100-826A1; Toyota 28100-11010, 28100-11010-84, 28100-11020, 28100-11020-84, 28100-11060, 28100-11080, 28100-11080-84, 28100-11090, 28100-11090-1, 28100-11090-84, 28100-11130, 28100-11140, 28100-11150, 28100-11160, 28100-11170, 28100-16040, 28100-16041, 28100-21020, 28100-21021, 28100-21030, 28100-21031, 28100-35110, 28100-76023-71; Yanmar 119255-77010, 119515-77010, 119626-77010, 119626-77011, 119717-77010, 124520-77012
