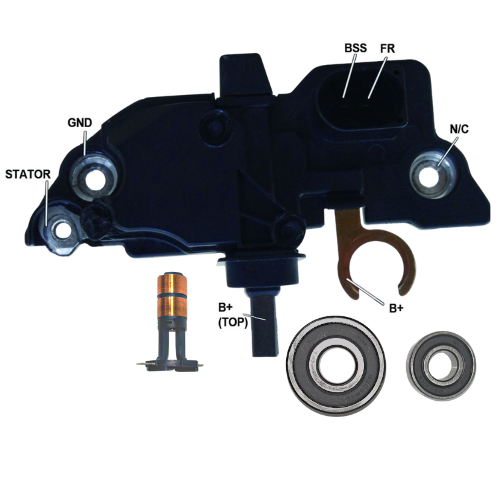

Alternator Regulator, Bearing & Slip Ring — Mercedes-Benz C230
Specifications and Features
Regulator
-
Type: Regulator
-
Activation: Stator
-
Circuit: A-Circuit
-
Ground: N
-
Mounting Length: MTG Length
-
LRC: Y
-
Plug Code: 379
-
Plug Type: 379
-
Soft Start: Y
-
System Voltage: 12 Volt
-
Voltage Set: 10.7–16.0 V
-
Manufacturer: Bosch
-
Feature 1: 100% New Transpo
-
Feature 2: BSS (COM) Regulator
-
Feature 3: COM ID Code: 12
-
Feature 4: A-Circuit, voltage set range from 10.7 V to 16.0 V controlled by BSS signal
-
Feature 5: COM-BSS Regulator
-
Feature 6: Field Short Circuit Protection
-
Feature 7: LRC and Soft Start
-
Feature 8: Stator Activated
-
Note 1: Companion rectifier IBR216 and IBR201
-
Specifications For: Bosch IR/IF Alternators
-
Specifications: 12 Volt, A-Circuit, BSS-FR Terminals
Bearing
-
Type: Bearing
-
ID: 17
-
Industry Reference Number: 6003
-
OD: 35
-
Side 1 Feature: Rubber Seal
-
Side 2 Feature: Rubber Seal
-
Width: 10
Slip Ring
-
Type: Slip Ring
-
ID: 7
-
Length Ring 1: 7.9
-
Length Ring 2: 7.9
-
Length Rings: 17.7
-
OD Slip Ring: 15.4
Compatible Vehicles
Please check the year, make, model, and engine size before purchasing.
100% New Replacement
Regulator / Brushes / Bearings / Slip Ring
For Mercedes-Benz and more.
Mercedes-Benz
-
C230 L4 1.8L — 2003–2005
Interchange Numbers
Regulator
IB293
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
13954, 23248, 23285, 23285, 23964
Replaces
-
Bosch: F 00M 144 147, F 00M 145 272, F 00M 145 293, F 00M 145 367, F 00M 145 385
-
Mercedes-Benz: 003-154-37-06, 003-154-58-06
Used On
-
Mercedes-Benz: 2003–2005
Unit Numbers
Bosch
0 124 515 088, 0 124 515 198, 0 124 615 022, 0 124 615 028, 0 124 625 017, 0 124 625 022
Marelli
063536150280
Mercedes-Benz
012-154-06-02, 013-154-21-02, 271 154 09 02, 271-154-02-02, 271-154-06-02, 271-154-08-02, 271-154-10-02, 628-154-01-02, A 271 154 09 02, A013-154-21-02, A2711540202, A2711540802, A2711541002, A6281540102
