DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LRC 9 SECOND
- PLUG CODE 312
- SYSTEM VOLTAGE 12
- TERMINALS S, IG, L
- VOLT SET 14.6
- MFR:DENSO
- DIM 1:63.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- FEATURE 2:Circuit protected against shorted field, shorted lamp, load dump, battery disconnect
- NOTE 1:Active lamp function - with output.
- NOTE 2:*Replaces Denso 126000-1520, -1521, -1730, -2250 w/o LRC
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset, 5 sec. LRC
- TYPE Brush Holder
- HEIGHT 23.7
- DIST MTG HOLES 26.1
- HEIGHT 25.93
- LENGTH OA 22.66
- MOUNTING HOLE SIZE 4.3
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM 336
- OD 46
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 14
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.

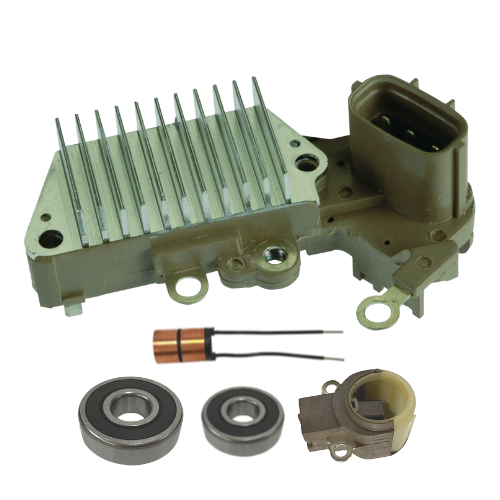

100% NEW REPLACEMENT
Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Lexus Toyota and more.
Lexus
- LX450 L6 4.5L 1996-1997
Toyota
- Paseo L4 1.5L 1993-1999
- Tercel L4 1.5L 1993-1998
- 4Runner L4 2.4L 1993-1995
- 4Runner L4 2.7L 1996-1999
- Land Cruiser L6 4.5L 1993-1997
- Pickup L4 2.4L 1993-1995
- T100 L4 2.7L 1994-1998
- Tacoma L4 2.4L 1995-1999
- Tacoma L4 2.7L 1995-1999
Interchange #
Regulator
IN437, IN437HD
Brush Holder Assy
39-8200
Brushes
38-8201
Bearing, Ball
10-3022-4, 10-3022-4E, 10-3022-4W
Slip Ring, Rotor
28-82853
Lester
13409, 13486, 13486, 13487, 13489, 13497, 13512, 13536, 13536, 13673, 13673, 21337, 23053, 23273
Replaces
Denso 126000-1730, 126000-1750, 126000-1930, 126000-2250, Toyota 27700-11070, 27700-11080, 27700-66040, 27700-75020
USED ON
Lexus (1996-1997) ** Toyota (1993-1999) **
UNIT NUMBERS
Denso 101211-0200, 101211-0201, 101211-0340, 101211-0350, 101211-0430, 101211-0431, 101211-0432, 101211-0520, 101211-0521, 101211-0522, 101211-0530, 101211-0531, 101211-0590, 101211-0740, 101211-0970, 101211-0971, 101211-0972, 101211-4120, 101211-4121, 101211-4122, 101211-5150, 101211-5160, 101211-5270, 101211-5780, 101211-7000, 102211-5001, 102211-5002; Lexus 27060-66070, 27060-66070-84; Toyota 27060-11270, 27060-11270-84, 27060-11280, 27060-11280-84, 27060-11290, 27060-11300, 27060-11300-84, 27060-11320, 27060-11330, 27060-11330-84, 27060-11330-84, 27060-11340, 27060-11340-84, 27060-35160, 27060-66040, 27060-66070, 27060-66070-84, 27060-67030, 27060-67070, 27060-67110, 27060-72340, 27060-75040, 27060-75040-84, 27060-75100, 27060-75110, 27060-75150, 27060-75150-84, 27060-75150-84, 27060-75170
