DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- SYSTEM VOLTAGE 12
- TERMINALS LIN
- MFR: VALEO
- FEATURE 1:100% New Transpo
- FEATURE 2:LIN (COM) Regulator
- FEATURE 3:COM ID Code: 73
- SPECS FOR: Valeo IR/IF Alternators
- SPECS:12 Volt, A-Circuit, 14.3 Vset, LIN Terminals
- TYPE Brushes
- LENGTH 15.4
- THICKNESS 6.35
- VOLT 12
- WIDTH 4.6
- TYPE Bearing
- ID 15
- IND REF NUM 6202
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 11
- TYPE Slip Ring
- ID 8.8
- LENGTH OA 48.30
- OD SLIP RING 14.0
Compatible Vehicles:
*Please check the year, make, model, and engine size. Thank you.
100% NEW REPLACEMENT

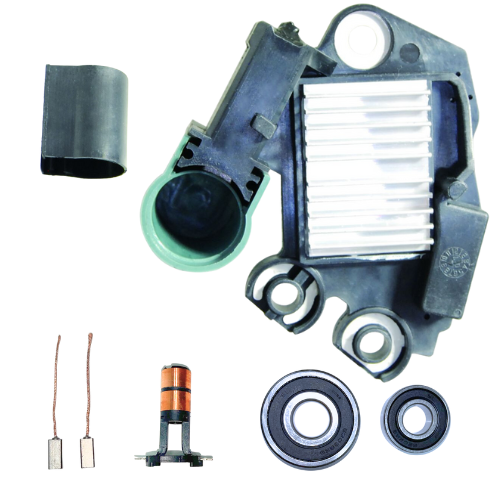

Regulator/Brushes/Bearings/Slip Ring
For Audi, Volkswagen, and more.
Audi
- A3 L4 2.0L 2017
- A3 Quattro L4 2.0L 2017
- S3 L4 2.0L 2017
Volkswagen
- Golf R L4 2.0L 2016-2017
- Atlas V6 3.6L 2018-2020
- Touareg V6 3.0L 2013-2017
Interchange #
Regulator
M236
Brushes
PX60
Bearing, Ball
6-202-2, 6-202-4, 6-202-4E, 6-202-4N, 6-202-4W
Slip Ring, Rotor
28-94867
Lester
11706, 11815, 11818, 20577, 20702, 20705, 20706, 20708, 20739, 21052, 21052, 21579, 21579
Replaces
Mercedes-Benz A 004 154 27 06, Valeo 599236, 599306, 599506
USED ON
Audi (2017) ** Volkswagen (2013-2020) **
UNIT NUMBERS
Audi, Volkswagen 03H-903-023-J, 03H-903-023-JX, 03H-903-023J, 03H-903-023JX, 03L-903-023-N, 03L-903-023-NX, 03L-903-024-L, 03L-903-024-LX, 03L903023N, 03L903023NX, 04E-903-015-D, 04E-903-015-DX, 04E-903-015D, 04E-903-015DX, 04E-903-021-Q, 04E-903-021-QX, 04E-903-021Q, 04E-903-021QX, 04E-903-023-M, 04E-903-023-MX, 04E-903-023M, 04E-903-023MX, 04L-903-023-H, 04L-903-023-HX, 04L-903-023H, 04L903023HX, 059 903 023 S, 059 903 023 SX, 059-903-023-M, 059-903-023-MX, 059-903-023-S, 059-903-023M, 059-903-023MX, 059903-023-SX, 06E-903-023-C, 06E-903-023C, 06H-903-017-D, 06H-903-017-DX, 06H-903-017D, 06H-903-017DX, 06J-903-023-K, 06J-903-023-KX, 06J-903-023K, 06J-903-023KX, 06K-903-015-B, 06K-903-015-BX, 06K-903-015B, 06K-903-015BX, 6H903017D, 6H903017DX; Lucas LRA04157; Mercedes-Benz 000 906 30 00, A 000 906 30 00; Original Reference Number 12090416, 553456RI, 930956, AVA541; Valeo 286703, 286739, 439835, 439840, 440327, 440560, 440565, 440674, 931413, FG15T036, FG18T063, FG18T079, FG18T084, FG18T101, FG18T119, FG18T120, FG18T121, FG18T122, FG18T123, FG18T142, FG18T159, FG18T162, FG18T163, FG18T166, FG18T169, FG18T170, FGN18T063, FGN18T079, FGN18T084, FGN18T101, FGN18T119, FGN18T120, FGN18T121, FGN18T122, FGN18T123, FGN18T142
