DESCRIPTION
Specifications and Features:
TYPE: Regulator
ACTIVATION: Ignition Activated
CIRCUIT: A-Circuit
LAMP: Active Lamp – With Output
PLUG CODE: 318
SYSTEM VOLTAGE: 12

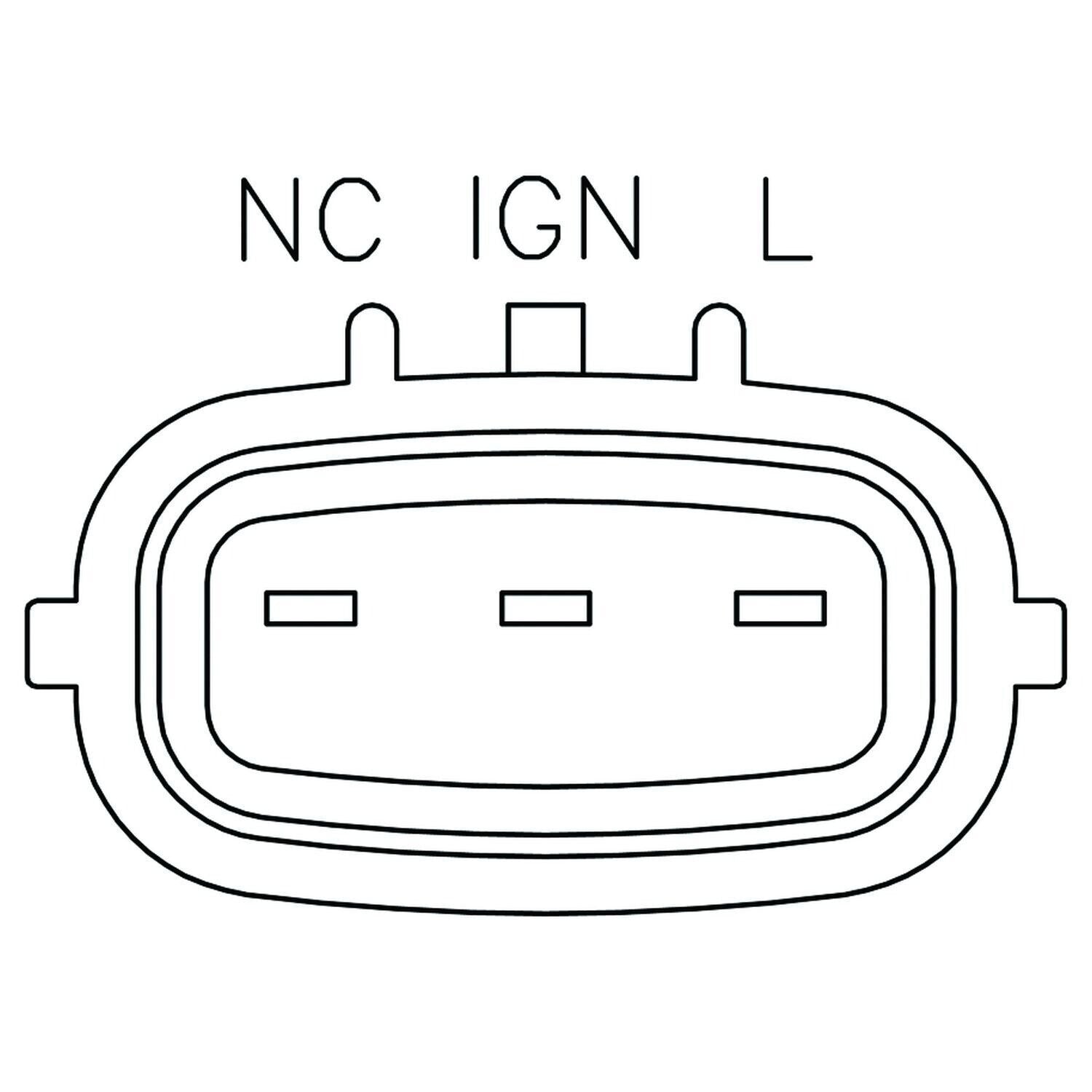

TERMINALS: D, IG, L
VOLT SET: 14.4
MFR: Denso
FEATURE 1: 100% New Transpo
FEATURE 2: Ignition Activated
NOTE 1: D-terminal has no function
NOTE 2: Active lamp function – with output
SPECS FOR: Denso IR/IF Alternators
SPECS: 12 Volt, A-Circuit, D-IG-L Terminals, 14.4 V Set
TYPE: Brush Holder
DIST MTG HOLES: 26.1
HEIGHT: 25.93
LENGTH OA: 22.66
MOUNTING HOLE SIZE: 4.3
VOLT: 12
TYPE: Brushes
CONTACT SURFACE: Concave
INSULATED LEAD: No
LEAD ATTACH LOCATION: Side
LENGTH: 15
LENGTH LEAD: 48
TERMINATION TYPE: None
THICK: 4.8
VOLT: 12
WIDTH: 7
TYPE: Bearing
ID: 15
IND REF NUM: 6002
OD: 32
SIDE-1 FEATURE: Rubber Seal
SIDE-2 FEATURE: Rubber Seal
WIDTH: 9
TYPE: Slip Ring
ID: 8.85
LENGTH RING 1: 9.55
LENGTH RING 2: 9.7
LENGTH RINGS: 20.7
OD SLIP RING: 14.5
Compatible Vehicles:
Please check the year, make, model, and engine size. Thank you.
100% NEW REPLACEMENT

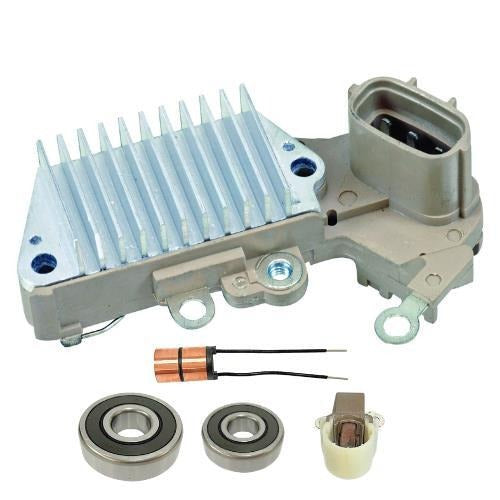

Regulator / Brush Holder / Brushes / Bearings / Slip Ring
For Acura, Isuzu, and more
Acura
SLX V6 3.5L (1998–1999)
Isuzu
Trooper V6 3.5L (1998–2002)
VehiCROSS V6 3.5L (1999–2001)
Interchange #
Regulator: IN248
Brush Holder Assy: 39-8200
Brushes: 38-8201
Bearing, Ball:
6-102-4, 6-102-4E, 6-102-4N, 6-102-4W
Slip Ring, Rotor: 28-82853
Lester: 13837, 13875
Replaces:
Denso 126000-2480
Isuzu 8-97183-613-0
USED ON
Acura (1998–1999)
Isuzu (1998–2002)
UNIT NUMBERS
Acura: 8-97167-157-0, 8-97187-304-0, 8-97210-373-0
Denso: 102211-1740, 102211-5140
Isuzu: 8971671570, 8971671571, 8971873040, 8972103730
| COMPATIBLE VEHICLES | ||||
| Compatibility | Make | Model | Trim | Engine |
| 2002 | Isuzu | Trooper | Limited Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2002 | Isuzu | Trooper | LS Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2002 | Isuzu | Trooper | S Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Isuzu | Trooper | Limited Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Isuzu | Trooper | LS Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Isuzu | Trooper | S Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Isuzu | VehiCROSS | Base Sport Utility 2-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Isuzu | Trooper | Limited Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Isuzu | Trooper | LS Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Isuzu | Trooper | S Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Isuzu | VehiCROSS | Base Sport Utility 2-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Acura | SLX | Premium Sport Utility 4-Door | 3.5L 3494CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Isuzu | Trooper | S Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Isuzu | VehiCROSS | Base Sport Utility 2-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
| 1998 | Acura | SLX | Premium Sport Utility 4-Door | 3.5L 3494CC V6 GAS DOHC Naturally Aspirated |
| 1998 | Isuzu | Trooper | S Sport Utility 4-Door | 3.5L 3475CC V6 GAS DOHC Naturally Aspirated |
