DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT B-CIRCUIT
- SYSTEM VOLTAGE 12

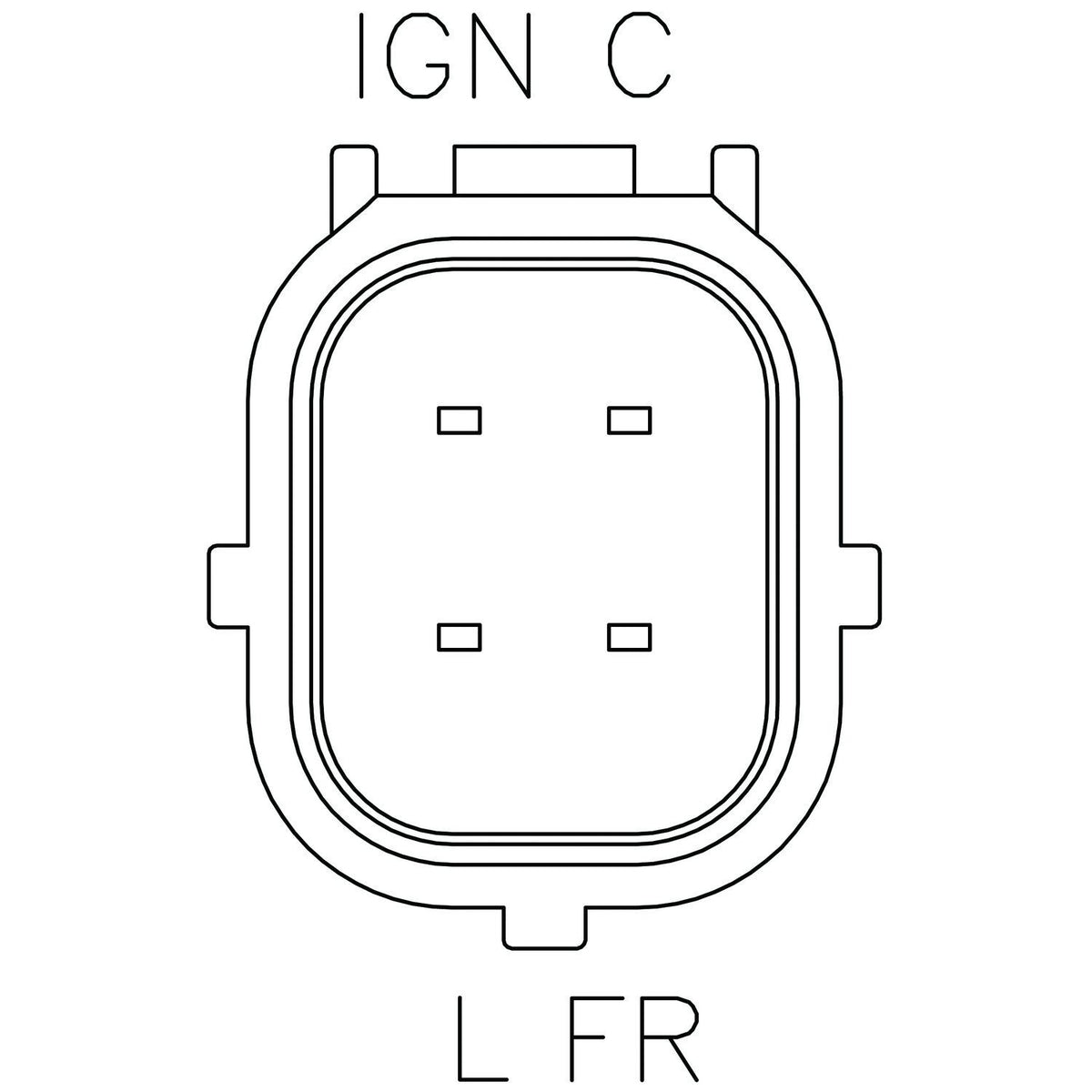

- TERMINALS IG, C, L, FR
- MFR:DENSO
- FEATURE 1:100% New Transpo
- FEATURE 2:Volt Set 14.35V
- FEATURE 3:Ignition Activated
- FEATURE 4:OE Compliant C-Function
- FEATURE 5:Standard Lamp Function - Without Output
- FEATURE 6:Field and Lamp short circuit protection
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, IG-C-L-FR Terminals
- TYPE Slip Ring
- ID 5.8
- LENGTH LEADS 11
- LENGTH OA 46.5
- LENGTH RING 1 8.2
- LENGTH RING 2 8.2
- OD SLIP RING 14.3
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

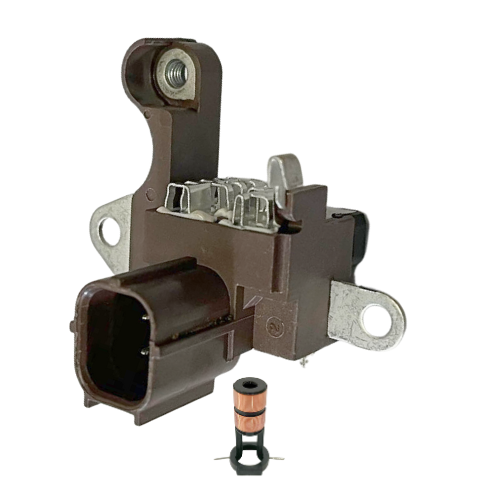

Regulator/Slip Ring
For Acura, Honda, and more.
Acura
- RL V6 3.7L 2009-2012
- TL V6 3.5L 2009-2014
- TL V6 3.7L 2009-2014
- TSX V6 3.5L 2010-2014
- MDX V6 3.7L 2010-2013
- ZDX V6 3.7L 2010-2013
Honda
- Accord V6 3.5L 2008-2012
- Accord Crosstour V6 3.5L 2010
- Pilot V6 3.5L 2009-2015
- Ridgeline V6 3.5L 2009-2014
- Odyssey V6 3.5L 2008-2017
Interchange #
Regulator
IN6365
Slip Ring, Rotor
28-82854
USED ON
Acura (2009-2014) ** Honda (2008-2017)
UNIT NUMBERS
Acura 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, CSF92; Denso 104210-1240, 104210-1600, 104210-5910, 104210-5920, 104211-8520, TN104210-1600, TN104211-8520; Honda 06311-RV0-505RM, 31100-R70-A01, 31100-R70-A01RM, 31100-R70-A11, 31100-R70-A11RM, 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A01, 31100-RV0-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, 31100-RV0-A12, 31100-RV0-A12RM, CSF91, CSF92, CSJ24, CSJ60, CSK52; Original Reference Number TN104210-5910
