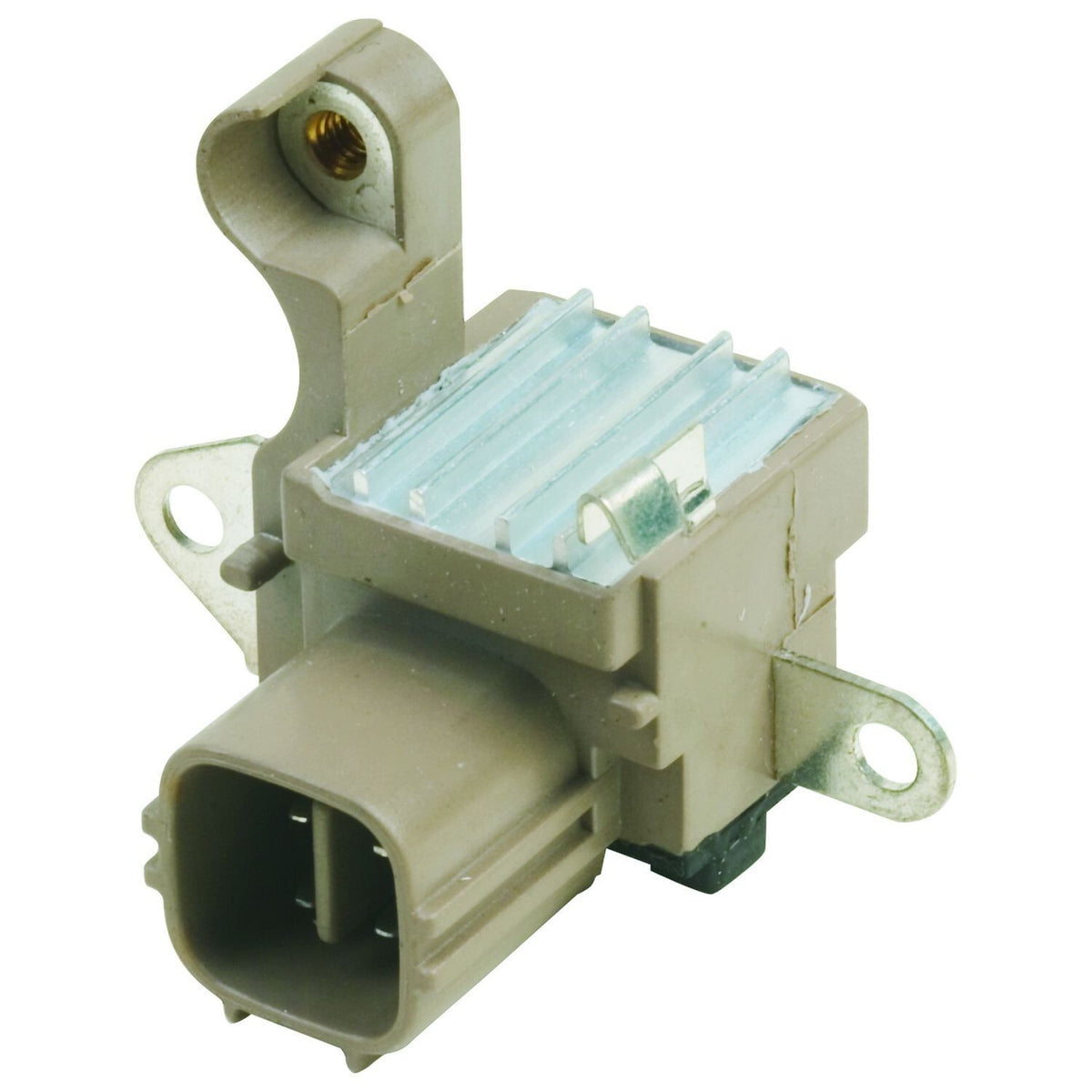

DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION LAMP ACTIVATED
- CIRCUIT B-CIRCUIT
- LAMP STANDARD LAMP - NO OUTPUT
- LRC W/ LRC
- PLUG TYPE 107
- SYSTEM VOLTAGE 12

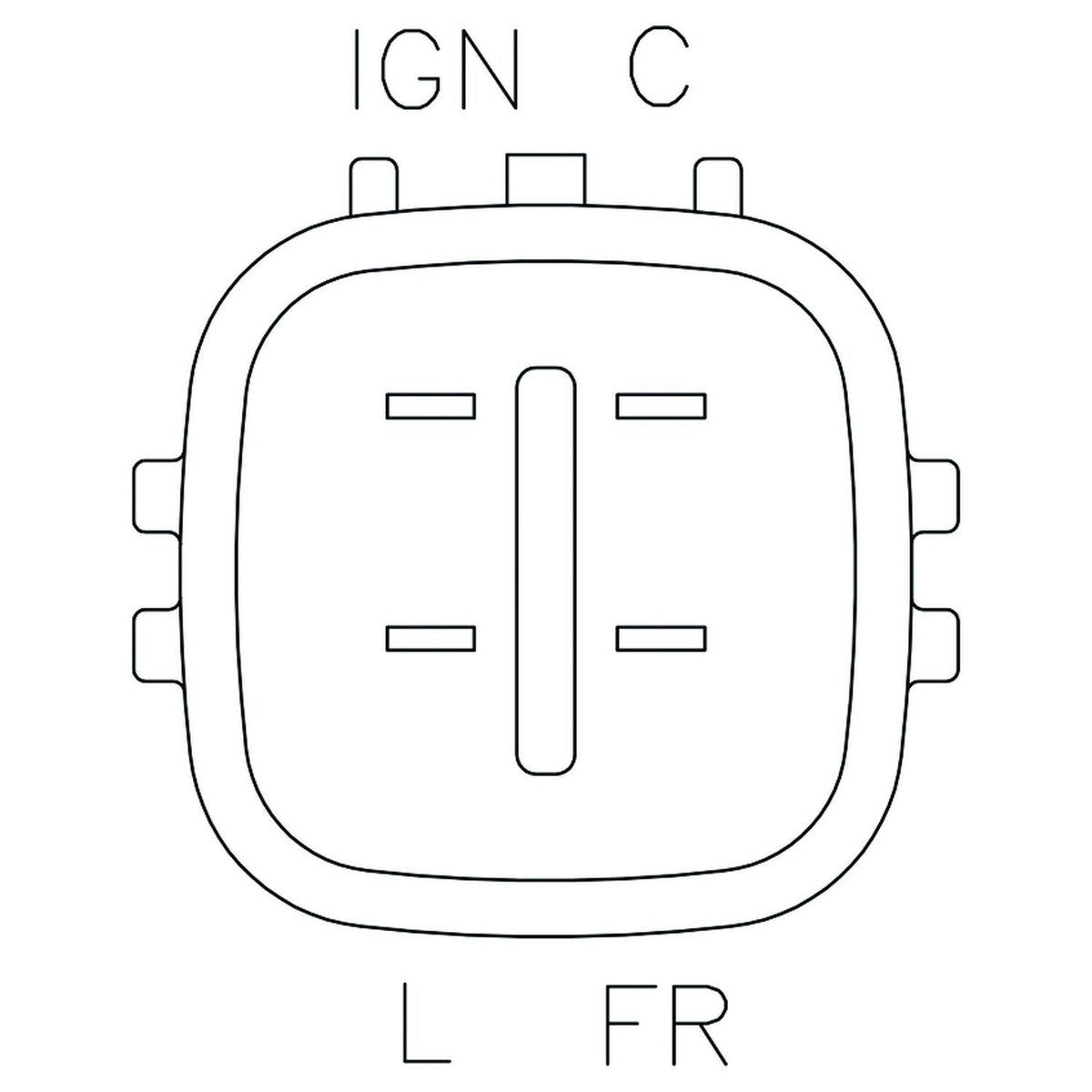

- TERMINALS D, D, L, FR (NC-NC-L-FR)
- VOLT SET 14.4
- MFR: DENSO
- FEATURE 1:100% New Transpo
- FEATURE 2:Lamp activated
- FEATURE 3:Soft start & LRC
- FEATURE 4:Short-circuit protection: lamp, field
- NOTE 1:NC = no connection
- NOTE 2:Standard lamp function - no output.
- SPECS FOR: Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, NC-NC-L-FR Terminals, 14.4 Vset
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
Fits many makes and models of Kia, Saturn, and more.
Kia
- Borrego V6 3.8L 2009-2011
- Sedona V6 3.8L 2008-2010
Saturn
- Vue V6 3.5L 3471cc 2004-2007
Interchange #
IN6308
Lester
11062, 11387
Replaces
Denso 126600-3080, Original Reference Number GL43080
USED ON
Kia (2008-2011) ** Saturn (2004-2007)
UNIT NUMBERS
Denso 104210-3770, 104210-5810; GM 12582024; Honda 31100-RDM-A01, 31100-RDM-A01RM, CSC77; Kia 37300-3C210
