DESCRIPTION
Specifications and Features:

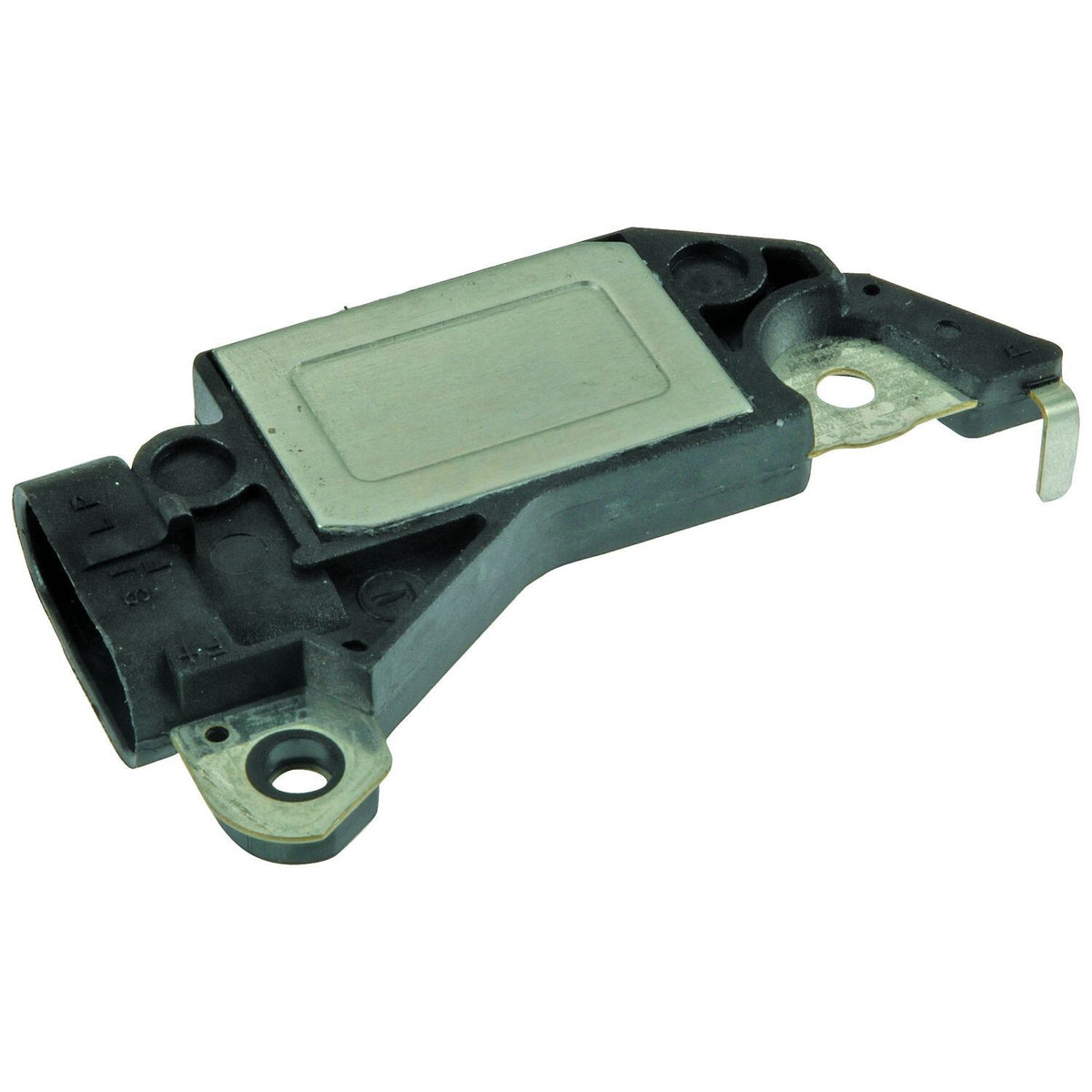

- TYPE Regulator
- CIRCUIT B-CIRCUIT
- LRC 10 SECOND

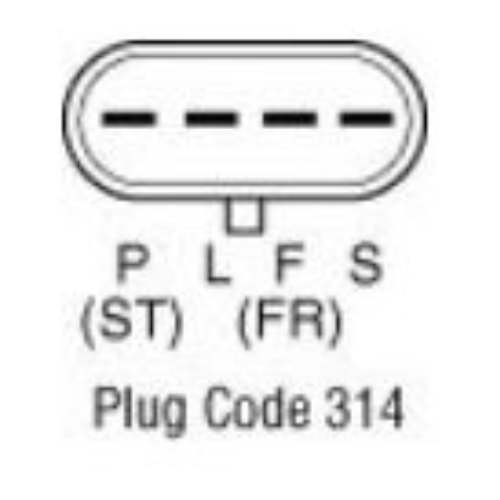

- PLUG CODE 314
- SYSTEM VOLTAGE 12
- TERMINALS P, L, F, S
- VOLT SET 14.7
- MFR: DELCO
- FEATURE 1:100% New Transpo
- FEATURE 2:Smart cluster compatible
- NOTE 1:D751 (19009751) is not used with Remote TC Network as is the early 19009733 regulator
- SPECS FOR: Delco LR630 Series IR/IF Water-Cooled Alternators
- SPECS:12 Volt, B-Circuit, P-L-F-S Terminals, 15.1 Vset, 10 sec. LRC
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
Fits many makes and models of Cadillac and more.
Cadillac
- DeVille V8 4.6L 2000
- Seville V8 4.6L 1998-2000
Interchange #
D751
Lester
8236, 8236, 8294, 8294
Replaces
Delco 19009733, 19009736, 19009751, Delco ASVR 19009733, Original Reference Number 31733-8A08, 9751
USED ON
Cadillac (1998-2000)
UNIT NUMBERS
Delco 10464396, 10464428, 10464434, 10464581, 10480280, 10480338, 10480340, 10480344; GM 10464396, 10464428, 10464434, 10464581, 19206559
