DESCRIPTION
Specifications and Features:

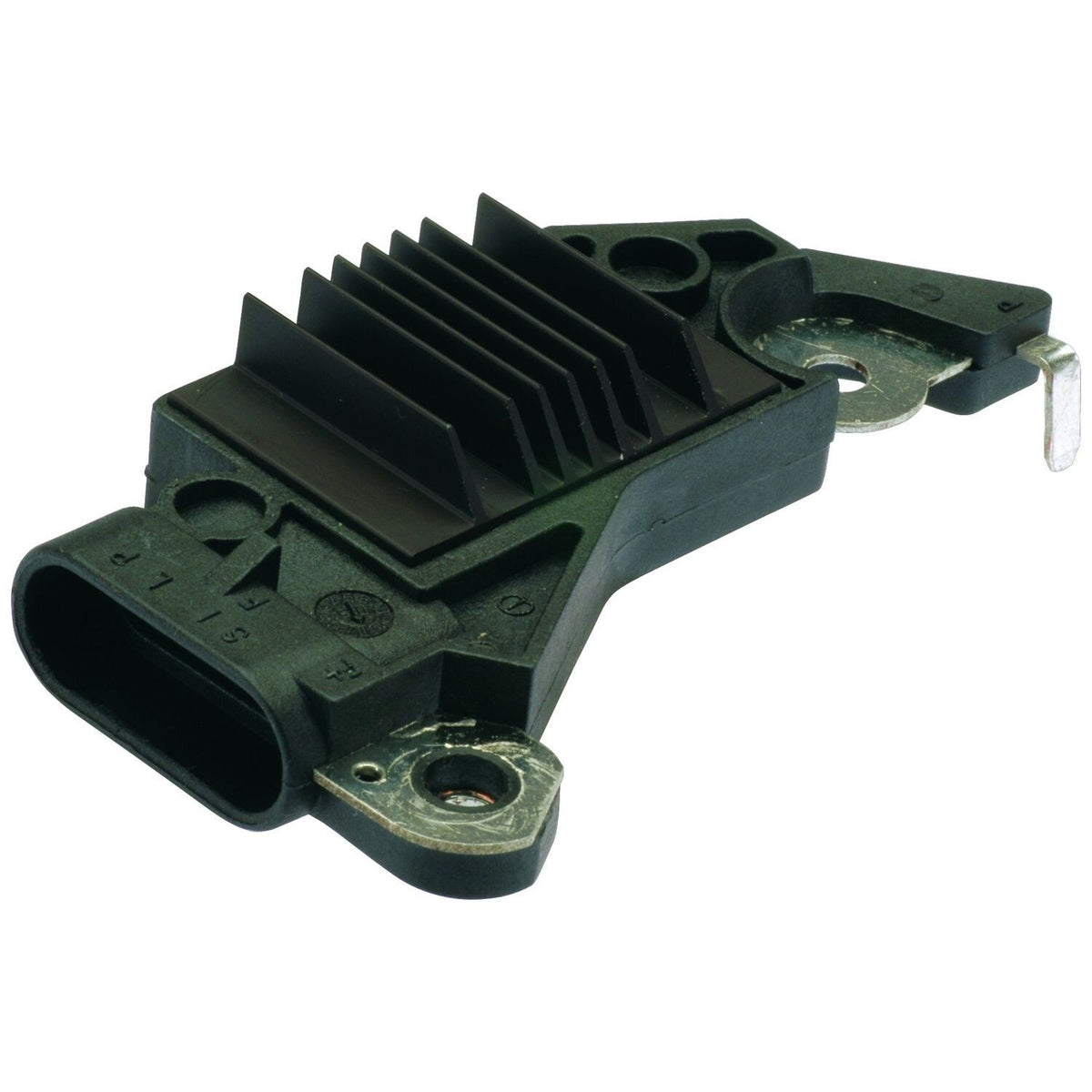

- TYPE Regulator
- CIRCUIT B-CIRCUIT
- LRC 10 SECOND

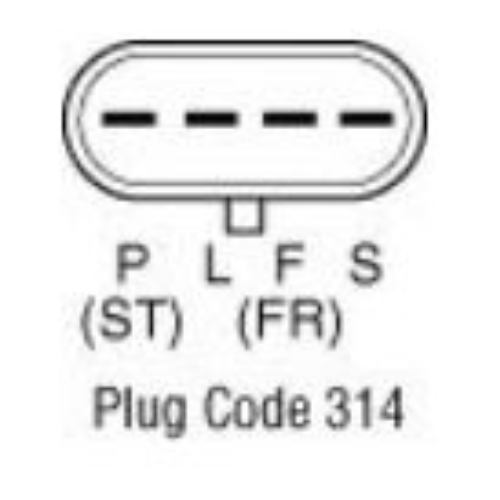

- PLUG CODE 314
- SYSTEM VOLTAGE 12
- TERMINALS P, L, F, S
- VOLT SET 14.6
- MFR:DELCO
- FEATURE 1:100% New Transpo Heavy Duty ASVR Design
- FEATURE 2:OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
- FEATURE 3:Welded construction - no solder joints for hi-temperature reliability & increased field life
- NOTE 1:With temperature compensation. Used on vehicles w/ digital instrument cluster.
- SPECS FOR:Delco CS130D Series IR/IF Alternators
- SPECS:12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 10 sec. LRC
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
Fit many makes and models of Buick Chevrolet GMC Isuzu Oldsmobile Pontiac and more.
Buick
- Camaro V6 3.8L 1998
- Century V6 3.1L 1997-1998
- Park Avenue V6 3.8L 1997-1998
- Skylark L4 2.4L 1996-1998
- Regal V6 3.8L 1997-1998
Chevrolet
- Cavalier L4 2.2L 1996-2002
- Cavalier L4 2.4L 1999-2002
- Astro V6 4.3L 2000
- Cavalier L4 2.3L 1995
- Lumina V6 3.1L 1998-1999
- Lumina V6 3.8L 1999
- Malibu L4 2.4L 1997-1999
- Malibu V6 3.1L 1997-1998
- Monte Carlo V6 3.1L 1998-1999
- Monte Carlo V6 3.8L 1999
- Blazer V6 4.3L 1998-2000
- S10 L4 2.2L 1998-2003
- S10 V6 4.3L 1998-2000
GMC
- Jimmy V6 4.3L 1998-2000
- Safari V6 4.3L 2000
- Sonoma L4 2.2L 1998-2003
- Sonoma V6 4.3L 1998-2000
Isuzu
- Hombre L4 2.2L 1998-2000
- Hombre V6 4.3L 1998-2000
Oldsmobile
- Alero L4 2.4L 1999-2001
- Alero V6 3.4L 1999
- Achieva L4 2.4L 1996-1998
- Bravada V6 4.3L 1998-2000
- Cutlass V6 3.1L 1997-1998
- Intrigue V6 3.8L 1998-1999
Pontiac
- Firebird V6 3.8L 1998
- Grand Am L4 2.4L 1996-2001
- Grand Am V6 3.4L 1999
- Grand Prix V6 3.1L 1998
- Grand Prix V6 3.8L 1998
- Sunfire L4 2.2L 1996-2002
- Sunfire L4 2.3L 1995
- Sunfire L4 2.4L 1996-2002
Interchange #
D705XHD, 35-137, 35-137-1, 35-137-2, D705, D705-1, D729
Lester
8190-11, 8197-7, 8199-2, 8222-3, 8222-3, 8223-7, 8224-11, 8224-11, 8224-11, 8228-7, 8228-7, 8229-7, 8230-7, 8231-5, 8231-5, 8233-7, 8240-7, 8275-2, 8276-7, 8276-7, 8297
Replaces
Delco 19009705, 19009729, 705, Delco ASVR 19009729, 19009763, Original Reference Number 9729
USED ON
Buick (1996-1998) ** Chevrolet (1995-2003) ** GMC (1998-2003) ** Isuzu (1998-2000) ** Oldsmobile (1996-2001) ** Pontiac (1996-2002)
UNIT NUMBERS
Delco 10463605, 10463638, 10463639, 10463838, 10463839, 10463840, 10463842, 10463843, 10464069, 10464071, 10464072, 10464084, 10464085, 10464086, 10464087, 10464097, 10464401, 10464409, 10464410, 10464411, 10464418, 10464419, 10464420, 10464423, 10464431, 10464432, 10464433, 10480074, 10480076, 10480079, 10480184, 10480191, 10480207, 10480217, 10480218, 10480250, 10480251, 10480252, 10480254, 10480259, 10480260, 10480289, 10480299, 10480301, 10480307, 10480320, 10480321, 10480322, 10480332, 10480351, 10480353, 10480354, 10480361, 10480362, 15768315, 19244782, 19244786, 19244787, 19244794; GM 10463605, 10463638, 10463639, 10463839, 10463840, 10463842, 10464069, 10464071, 10464072, 10464084, 10464085, 10464086, 10464087, 10464097, 10464409, 10464411, 10464418, 10464419, 10464420, 10464423, 10464431, 10464432, 10464433, 10464458, 19244788; Isuzu 8104640840, 8104640850; Original Reference Number 10480351Y
