DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LAMP ACTIVE LAMP - WITH OUTPUT
- LRC 5 SECOND
- SYSTEM VOLTAGE 12

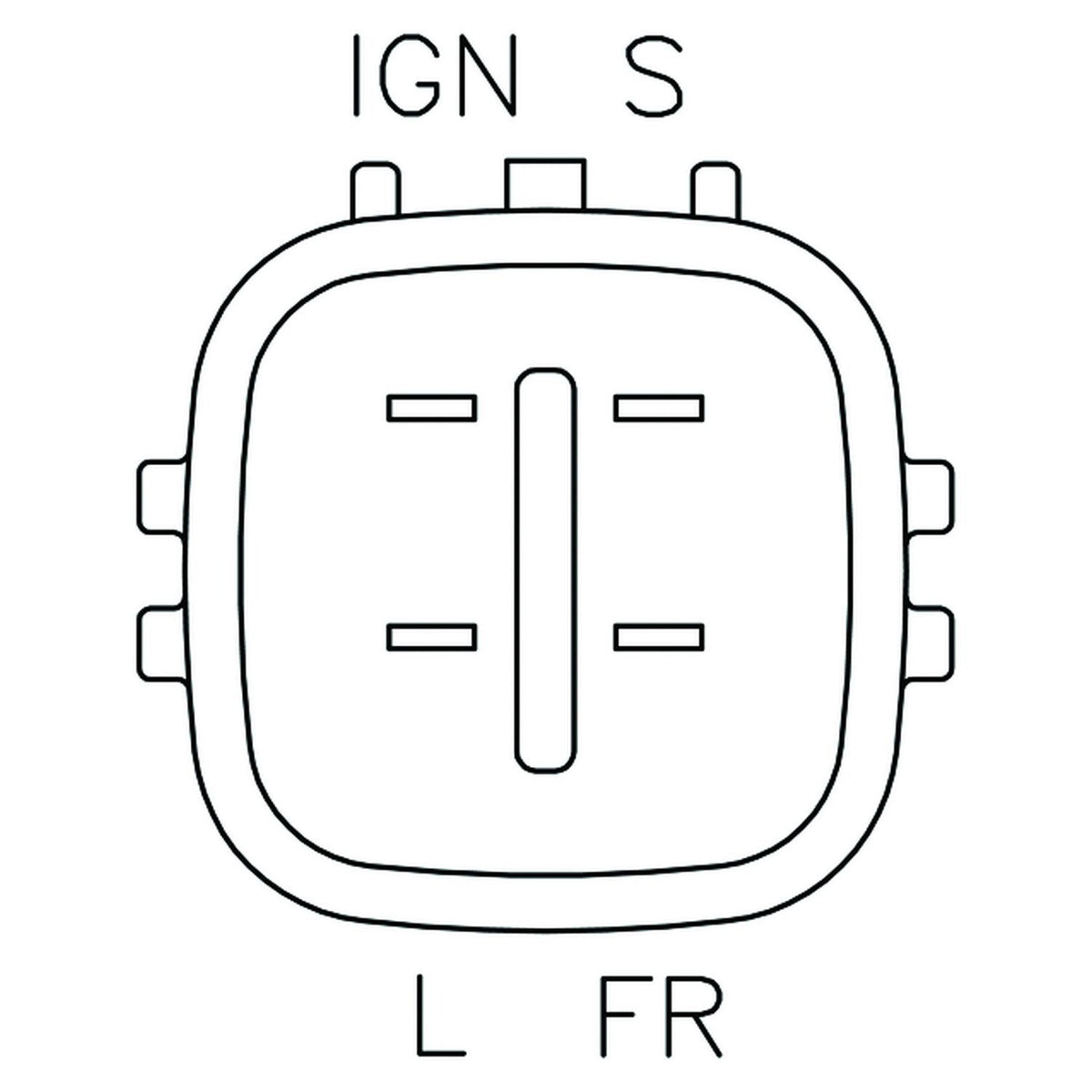

- TERMINALS IG, S, L, DFM
- VOLT SET 14.4
- MFR:BOSCH
- FEATURE 1:100% New Transpo
- FEATURE 2:External sense
- FEATURE 3:Ignition activated but will lamp activate and stator start
- FEATURE 4:Shorted field, lamp & choke protection
- NOTE 1:Active lamp function - with output.
- SPECS FOR:Bosch IR/IF Alternators
- SPECS:12 Volt, A-Circuit, IG-S-L-DFM Terminals, 14.4 Vset, 5 sec. LRC
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

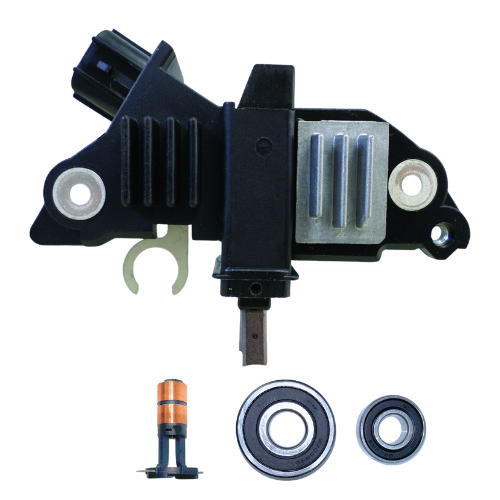

Regulator/Brushes/Bearings/Slip Ring
For Toyota and more.
Toyota
- Tacoma V6 4.0L 2005-2009
Interchange #
Regulator
IB236
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
11129, 21027, 22375, 22514, 22517, 22518, 23189
Replaces
Bosch F 00M 145 236, F 00M 145 305, F 00M 145 324, F 00M 145 334, F 00M 145 376, F 00M 145 392, F 00M 145 865, F 00M 145 873, F 00M 145 874, Toyota 27700-0L020, 27702-0D020
USED ON
Toyota (2005-2009)
UNIT NUMBERS
Bosch 0 120 000 023, 0 120 888 888, 0 124 0AC 30B, 0 124 0AC 5HB, 0 124 0AD 39A, 0 124 0AD 39B, 0 124 225 051, 0 124 225 052, 0 124 225 053, 0 124 225 054, 0 124 315 015, 0 124 315 016, 0 124 315 024, 0 124 315 025, 0 124 315 029, 0 124 315 033, 0 124 315 034, 0 124 315 040, 0 124 315 045, 0 124 325 071, 0 124 325 079, 0 124 325 080, 0 124 325 082, 0 124 325 084, 0 124 325 085, 0 124 325 086, 0 124 325 123, 0 124 325 165, 0 124 325 167, F 004 225 000, F 004 225 100; Lucas LRA03632; Original Reference Number 301889RI, 59212103, 89212103, 89215470, ABO401A, ABO401C, ADT311179C, L 80 920; Toyota 27060 0Q030, 27060-007NL, 27060-0D020, 27060-0D020, 27060-0D030-A, 27060-0D030-B, 27060-0D140, 27060-0D140A, 27060-0H070, 27060-0H080, 27060-0H221, 27060-0J051, 27060-0J061, 27060-0L030, 27060-0L040, 27060-0L040, 27060-0L050, 27060-0L060-B, 27060-0P010, 27060-0P020-84, 27060-0P110, 27060-0Q040, 27060-OD140, 270600-D030, 270600D14084
