DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- ID BRUSH RING 24
- LENGTH MOUNTING MTG LENGTH

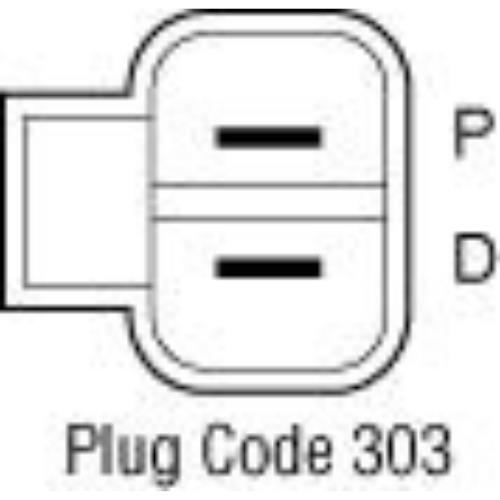

- PLUG CODE 303
- PLUG TYPE 303
- SYSTEM VOLTAGE 12
- TERMINALS P, D
- VOLT SET 14.3
- MFR:MITSUBISHI
- FEATURE 1:100% New Transpo
- NOTE 1:IM345 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators. See VRC101-26 regulator test adapter.
- SPECS FOR:Mitsubishi ED/IF Alternators
- SPECS:12 Volt, A-Circuit, D-P Terminals, 14.3 Vset
- TYPE Slip Ring
- ID 12.6
- LENGTH RING 1 7.5
- LENGTH RING 2 7.5
- LENGTH RINGS 17
- OD SLIP RING 22.6
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

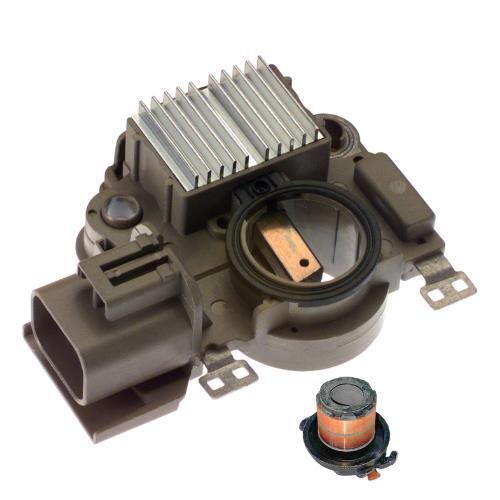

Regulator/Brushes/Slip Ring
For Kia Mazda and more.
Kia
- Sephia L4 1.8L 1997
Mazda
- 3 L4 2.0L 2004-2009
- 3 L4 2.3L 2004-2009
- 5 L4 2.3L 2006-2007
- Protege L4 1.5L 1997-1998
- Protege L4 1.6L 1999-2003
- Protege L4 1.8L 1997-2000
- Protege L4 2.0L 2001-2003
- Protege5 L4 2.0L 2002-2003
- RX-8 R2 1.3L 2004-2008
Interchange #
Regulator
IM345, 35-8347, 35-8378, A108120
Slip Ring, Rotor
28-83852
Lester
11008, 11025, 11174, 13718, 13718, 13719, 13719, 23875
Replaces
Mazda Z599-18-W70, Mitsubishi 345, A866X34572, A866X35472, Original Reference Number 354, 3546906P
USED ON
Kia (1997-1997) ** Mazda (1997-2008)
UNIT NUMBERS
Ford A4A2FB0191; Kia MZ599-18-300A; Mazda FP34-18-300, FP34-18-300A, FP34-18-300B, FP34-18-300C, FP34-18-300R00, FPG6-18-300, LF1F-18-300, LF1F-18-300R00, LF50-18-300, LF50-18-300A, LF50-18-300R0A, LF50-18-400, N3H1-18-300, N3H1-18-300A, N3H1-18-300B, N3H1-18-300R0A, Z599-18-300A, Z599-18-300C, Z599-18-300R, Z599-18-300R, Z59918300, Z59918300B, Z59918300D, Z59918300E, Z5A1-18-300, ZJ01-18-300; Mitsubishi A002TB0091, A002TB0091A, A002TB0091B, A002TB0191, A002TB0191A, A002TB0191B, A002TB0191C, A002TB1091A, A002TB1091B, A002TB2391, A002TB7791, A002TC0091, A003TG1291, A003TG1291A, A003TG1291B, A003TG1391, A003TG1391A, A003TG4791; Original Reference Number ADM51140, ADM51140
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2009 | Mazda | 3 | GS Hatchback 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | GS Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | GT Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | GT Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | GX Hatchback 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | GX Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | i Sedan 4-Door | 2.0L 1999CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | i Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | Mazdaspeed Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Turbocharged |
| 2009 | Mazda | 3 | S Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | 3 | S Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | GS Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | GT Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | GT Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | GX Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | i Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | Mazdaspeed Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Turbocharged |
| 2008 | Mazda | 3 | S Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | 3 | S Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | RX-8 | 40th Anniversary Edition Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2008 | Mazda | RX-8 | Grand Touring Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2008 | Mazda | RX-8 | GS Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2008 | Mazda | RX-8 | GT Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2008 | Mazda | RX-8 | Sport Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2008 | Mazda | RX-8 | Touring Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2007 | Mazda | 3 | i Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | 3 | Mazdaspeed Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Turbocharged |
| 2007 | Mazda | 3 | S Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | 3 | S Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | 5 | Grand Touring Mini Passenger Van 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | 5 | Sport Mini Passenger Van 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | 5 | Touring Mini Passenger Van 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | RX-8 | Base Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2006 | Mazda | 3 | GS Hatchback 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | GS Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | GT Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | GT Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | GX Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | i Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | S Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 3 | S Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 5 | Sport Mini Passenger Van 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | 5 | Touring Mini Passenger Van 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | RX-8 | Base Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2005 | Mazda | 3 | GS Hatchback 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | GS Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | GT Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | GT Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | GX Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | i Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | S Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | S Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | SP23 Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | 3 | SP23 Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | RX-8 | Base Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2005 | Mazda | RX-8 | Shinka Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2004 | Mazda | 3 | GS Hatchback 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | GS Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | GT Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | GT Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | GX Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | i Sedan 4-Door | 2.0L 2000CC 122Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | S Hatchback 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | 3 | S Sedan 4-Door | 2.3L 2260CC l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | RX-8 | Base Coupe 4-Door | 1.3L 1308CC R2 GAS Naturally Aspirated |
| 2003 | Mazda | Protege | DX Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2003 | Mazda | Protege | ES Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2003 | Mazda | Protege | LX Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2003 | Mazda | Protege | Mazdaspeed Sedan 4-Door | 2.0L 1998CC 122Cu. In. l4 GAS DOHC Turbocharged |
| 2003 | Mazda | Protege5 | Base Hatchback 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Mazda | Protege | DX Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Mazda | Protege | ES Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Mazda | Protege | LX Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Mazda | Protege5 | Base Hatchback 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Mazda | Protege | DX Sedan 4-Door | 1.6L 1589CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Mazda | Protege | ES Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Mazda | Protege | LX Sedan 4-Door | 1.6L 1589CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Mazda | Protege | LX Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Mazda | Protege | MP3 Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Mazda | Protege | DX Sedan 4-Door | 1.6L 1589CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Mazda | Protege | ES Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Mazda | Protege | LX Sedan 4-Door | 1.6L 1589CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Mazda | Protege | DX Sedan 4-Door | 1.6L 1589CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Mazda | Protege | ES Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Mazda | Protege | LX Sedan 4-Door | 1.6L 1589CC l4 GAS DOHC Naturally Aspirated |
| 1998 | Mazda | Protege | DX Sedan 4-Door | 1.5L 1489CC l4 GAS DOHC Naturally Aspirated |
| 1998 | Mazda | Protege | ES Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 1998 | Mazda | Protege | LX Sedan 4-Door | 1.5L 1489CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Kia | Sephia | GS Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Kia | Sephia | LS Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Kia | Sephia | RS Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Mazda | Protege | DX Sedan 4-Door | 1.5L 1489CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Mazda | Protege | ES Sedan 4-Door | 1.8L 1839CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Mazda | Protege | LX Sedan 4-Door | 1.5L 1489CC l4 GAS DOHC Naturally Aspirated |
