DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- PLUG CODE 338
- SYSTEM VOLTAGE 12
- TERMINALS I, FR, A
- VOLT SET 14.4
- MFR:FORD
- FEATURE 1:100% New Transpo
- NOTE 1:Regulator goes to Vsec (secondary regulation) and turns on light with loss of sense (A).
- NOTE 2:With loss of light (I) connection, regulator continues to function but vehicle indicator light does not turn on.
- NOTE 3:Design includes Field Current Limiting.
- SPECS FOR:Ford 6G Series IR/IF Alternators
- SPECS:12 Volt, A-Circuit, I-FR-A Terminals, 14.4 Vset, Black w/ Black Cover
- TYPE Slip Ring
- ID 13.4
- LENGTH LEADS 30
- LENGTH RING 1 7.8
- LENGTH RING 2 9.9
- LENGTH RINGS 18.9
- OD SLIP RING 27
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

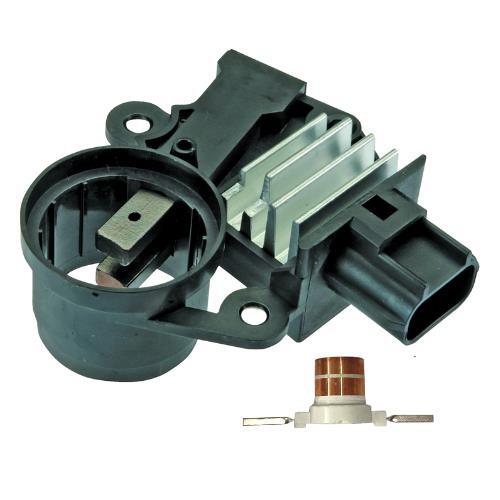

Regulator/Slip Ring
For Ford Lincoln Mazda and more.
Ford
- Expedition V8 4.6L 2003-2004
- Expedition V8 5.4L 2003-2004
- F-100 Ranger L4 2.3L 2001
- Ranger L4 2.3L 2001-2009
Lincoln
- Navigator V8 5.4L 2003-2004
Mazda
- B2300 L4 2.3L 2001-2009
Interchange #
Regulator
F606
Slip Ring, Rotor
28-2859, 28-2859-10
Lester
8265, 8303, 8305, 8518
Replaces
Ford VP4L1U-10C359-AA, VP4LIU-10C359-AA
USED ON
Ford (2003-2004) ** Lincoln (2003-2004) ** Mazda (2001-2009)
UNIT NUMBERS
Ford 1L5U-10300-AC, 1L5U-10300-AD, 1L5U-10300-AE, 1L5Z-10346-AA, 1L5Z-10346-AARM, 1L5Z-10V346-AARM, 1L5Z-10V346-ABRM, 2L7U-10300-BA, 2L7U-10300-BB, 2L7Z-10346-BA, 2L7Z-10346-BARM, 2L7Z-10346-BB, 2L7Z-10V346-BBRM, 3L74-10300-AA, 3L74-10300-BA, 3L74-10300-BB, 3L74-10346-AA, 3L7Z-10346-AA, 3L7Z-10346-AARM, 3L7Z-10346-BA, 3L7Z-10346-BARM, 3L7Z-10V346-BBRM, 4U2Z-10V346-CCRM, 6L5T-10300-AA, 6L5Z-10346-AA, 6L5Z-10346-AARM, 6L5Z-10346-ABRM, 6L5Z-10346-ABRM, 6U2Z-10V346-DJRM; Ford Engineering 1L5U-AC, 1L5U-AD, 1L5U-AE, 2L7U-BA, 2L7U-BB, 3L74-AA, 3L74-BA, 3L74-BB; Mazda 1F70-18-300, 1F70-18-300A, 1F70-18-300R00; Visteon DN, DN, FL, FT, HS
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2009 | Ford | Ranger | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | Limited Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | Sport Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | Sport Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | Sport Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XLT Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | Limited Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XLT Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2008 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | Limited Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | STX Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | STX Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | STX Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XLT Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2007 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | Limited Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XLT Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2006 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XLT Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2005 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Ford | Expedition | Eddie Bauer Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | Eddie Bauer Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | NBX Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | NBX Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | XLS Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | XLS Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | XLT Sport Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | XLT Sport Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | XLT Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Expedition | XLT Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2004 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Lincoln | Navigator | Base Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS DOHC Naturally Aspirated |
| 2004 | Lincoln | Navigator | Ultimate Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Mazda | B2300 | SE Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Expedition | Eddie Bauer Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2003 | Ford | Expedition | Eddie Bauer Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2003 | Ford | Expedition | XLT Sport Utility 4-Door | 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2003 | Ford | Expedition | XLT Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XL Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Lincoln | Navigator | Base Sport Utility 4-Door | 5.4L 330Cu. In. V8 GAS DOHC Naturally Aspirated |
| 2003 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2003 | Mazda | B2300 | SE Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XL Crew Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XL Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2002 | Mazda | B2300 | Base Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2001 | Ford | Ranger | XL Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2001 | Ford | Ranger | XL Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2001 | Ford | Ranger | XL Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2001 | Ford | Ranger | XLT Extended Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2001 | Ford | Ranger | XLT Extended Cab Pickup 4-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2001 | Ford | Ranger | XLT Standard Cab Pickup 2-Door | 2.3L 140Cu. In. l4 GAS DOHC Naturally Aspirated |
