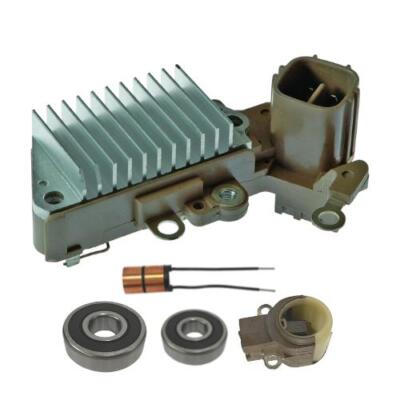

PRODUCT DESCRIPTION
Specifications and Features
Type: Regulator
Circuit: A-Circuit
System Voltage: 12V
Terminals: D, IG, L
Voltage Set: 14.6V
Plug Code / Type: 318
LRC: 9-second soft start
Mounting Length: 63.5 mm
Manufacturer: Denso
Features:
- 100% New
- Lamp function (same as IN456 but without output)
Specs For: Denso IR/IF Alternators
Brush Holder / Brushes / Bearings / Slip Ring Details
Brush Holder Assembly
- Height: 23.7 mm
- Overall Length: 43.3 mm
Brushes
- Contact Surface: Concave
- Insulated Lead: No
- Lead Attach Location: Side
- Length: 15 mm
- Lead Length: 48 mm
- Termination Type: None
- Thickness: 4.8 mm
- Width: 7 mm
- Voltage: 12V
Bearing, Ball
- ID: 15 mm
- OD: 35 mm
- Width: 13 mm
- Side-1 Feature: Rubber Seal
- Side-2 Feature: Rubber Seal
- Industrial Reference Number: 279
Slip Ring
- ID: 8.85 mm
- OD: 14.5 mm
- Length Ring 1: 9.55 mm
- Length Ring 2: 9.7 mm
- Total Ring Length: 20.7 mm
Compatible Vehicles
Please verify year, make, model, and engine size before ordering.
-
Suzuki
- Aerio L4 2.0L (2002–2003)
- Aerio L4 2.3L (2004)
- Esteem L4 1.6L (1995–2001)
- Esteem L4 1.8L (1999–2002)
- Grand Vitara V6 2.5L (1999–2000)
- Grand Vitara V6 2.7L (2001)
- Sidekick L4 1.8L (1996–1998)
- XL-7 V6 2.7L (2002–2004)
Interchange / Part Numbers
Regulator: IN452
Brush Holder Assembly: 39-8203-3
Brushes: 38-8201
Bearing, Ball: 10-2021-4, 10-2021-4E, 10-2021-4W
Slip Ring, Rotor: 28-82853
Lester: 11086, 13679, 13680, 13753, 13795, 13982, 23037
Replaces:
- Denso: 126000-2090, 126000-2160, 126000-2170, 126000-2470, 126000-2610, 126000-3030
- Honda: 31150-P2T-003, 31150-P2T-0030, 31150-PEA-A01, 31150-PRB-003, 31150-PV4-0030
- Marelli: 940038097
Used On: Suzuki (1995–2004)
Unit Numbers / OEM References:
- Acura: 06311-P8E-A21RM, 06311-PAA-505RM, 06311-PAA-506RM, 06311-PGE-505RM, 06311-PGE-506RM, 31100-P1R-A02, 31100-P1R-A02RM, 31100-P72-013, 31100-P72-013RM, 31100-P75-A01, 31100-P75-A01RM, 31100-P8E-A01, 31100-P8E-A01RM, 31100-P8E-A02, 31100-P8E-A21, 31100-P8E-A21RM, 31100-P8E-A22, 31100-P8E-A22RM, 31100-PAA-A01, 31100-PAA-A01RM, 31100-PFW-J01, 31100-PFW-J02, 31100-PFW-J02RM, 31100-PRB-003, 31100-PRB-003RM, 31100-PRB-013, CJG69, CJU31, CJU33, CJU86, CJV33, CJX68, CLG68, CLG69
- Denso: 101211-7850, 101211-7851, 101211-9250, 101211-9310, 101211-9330, 101211-9810, 101211-9820, 101211-9821, 101211-9860, 101211-9880, 101211-9970, 101211-9990, 102211-0680, 102211-0681, 102211-0690, 102211-0691, 102211-1010, 102211-1020, 102211-1021, 102211-1260, 102211-1270, 102211-1330, 102211-1331, 102211-1760, 102211-1770, 102211-1860, 102211-2670, 102211-2680, 102211-2870, 9761219-931, 9761219-933, 9761219-981, 9761219-999, 9762219-127
- Honda: 06311-P2T-003, 06311-P2T-003RM, 06311-P3F-J51RM, 06311-P8E-A21RM, 06311-P8F-A01RM, 06311-P8F-A02RM, 06311-PAA-505RM, 06311-PAA-506RM, 06311-PGE-506RM, 31100-P2T-003, 31100-P2T-0030, 31100-P2T-003RM, 31100-P3F-013, 31100-P3F-013RM, 31100-P3F-A01, 31100-P3F-A01RM, 31100-P3F-E01, 31100-P3F-G01, 31100-P3F-G52, 31100-P3F-G521, 31100-P3F-J01, 31100-P3F-J01RM, 31100-P3F-J51, 31100-P3F-J51RM, 31100-P5M-G02, 31100-P72-013, 31100-P72-0130, 31100-P72-013RM, 31100-P8E-A020, 31100-P8E-A21, 31100-P8E-A21RM, 31100-P8E-A22, 31100-P8E-A22RM, 31100-P8F-A01, 31100-P8F-A01RM, 31100-P8F-A02, 31100-P8F-A020, 31100-P8F-A02RM, 31100-PAA-A01, 31100-PAA-A010M, 31100-PAA-A01RM, 31100-PAA-L71, 31100-PAA-L710, 31100-PAA-L71RM, 31100-PCX-J01, 31100-PCX-J012, 31100-PCX-J01RM, 31100-PEA-A01, 31100-PEA-A01RM, 31100-PRA-003, CJU25, CJU31, CJU81, CJU82, CJU88, CJU97, CJV01, CJV02, CJV26, CJV27, CJV72, CJV77, CJV86, CJX67, CLG46, CLG68
- Isuzu: 5862061630
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
| 2004 | Suzuki | Aerio | LX Sedan 4-Door | 2.3L 2290CC 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Suzuki | Aerio | S Sedan 4-Door | 2.3L 2290CC 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Suzuki | Aerio | SX Wagon 5-Door | 2.3L 2290CC 140Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 | Suzuki | XL-7 | EX Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2004 | Suzuki | XL-7 | LX Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2003 | Suzuki | Aerio | GS Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2003 | Suzuki | Aerio | S Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2003 | Suzuki | Aerio | SX Wagon 5-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2003 | Suzuki | XL-7 | Limited Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2003 | Suzuki | XL-7 | Touring Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Aerio | GS Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Aerio | S Sedan 4-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Aerio | SX Wagon 5-Door | 2.0L 2000CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Esteem | GL Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Esteem | GL Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Esteem | GLX Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | Esteem | GLX Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | XL-7 | Base Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | XL-7 | Limited Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | XL-7 | Plus Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2002 | Suzuki | XL-7 | Touring Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GL Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GL Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GLX Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Esteem | GLX Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Grand Vitara | XL-7 Limited Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Grand Vitara | XL-7 Plus Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Grand Vitara | XL-7 Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2001 | Suzuki | Grand Vitara | XL-7 Touring Sport Utility 4-Door | 2.7L 2737CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GL Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GL Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GL Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 2000 | Suzuki | Esteem | GLX Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Grand Vitara | JLS Plus Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Grand Vitara | JLS Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Grand Vitara | JLX Plus Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Grand Vitara | JLX Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 2000 | Suzuki | Grand Vitara | Limited Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GL Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GL Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GL Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Sedan 4-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1999 | Suzuki | Esteem | GLX Wagon 5-Door | 1.8L 1790CC l4 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Grand Vitara | JLX Plus Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Grand Vitara | JLX Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Grand Vitara | JS Plus Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 1999 | Suzuki | Grand Vitara | JS Sport Utility 4-Door | 2.5L 2500CC V6 GAS DOHC Naturally Aspirated |
| 1998 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1998 | Suzuki | Esteem | GL Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1998 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1998 | Suzuki | Esteem | GLX Plus Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1998 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1998 | Suzuki | Esteem | GLX Wagon 5-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1998 | Suzuki | Sidekick | JLX Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1998 | Suzuki | Sidekick | JS Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1998 | Suzuki | Sidekick | JX Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1997 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1997 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1997 | Suzuki | Sidekick | JLX Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Suzuki | Sidekick | JS Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1997 | Suzuki | Sidekick | JX Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1996 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1996 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1996 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1996 | Suzuki | Sidekick | JLX Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1996 | Suzuki | Sidekick | JX Sport Sport Utility 4-Door | 1.8L 1840CC l4 GAS DOHC Naturally Aspirated |
| 1995 | Suzuki | Esteem | GL Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1995 | Suzuki | Esteem | GLX Plus Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1995 | Suzuki | Esteem | GLX Sedan 4-Door | 1.6L 1590CC 97Cu. In. l4 GAS SOHC Naturally Aspirated
|
