DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION IGNITION ACTIVATED
- CIRCUIT B-CIRCUIT
- LRC W/ LRC
- PLUG CODE 297
- SYSTEM VOLTAGE 12
- TEMPERATURE COMPENSATION Y
- TERMINALS IG, RLO, L, M
- VOLT SET 14.5
- MFR:DENSO
- FEATURE 1:100% New Transpo
- FEATURE 2:Standard Lamp - No Output
- FEATURE 3:Field, Lamp Short Circuit Protection
- FEATURE 4:Full range LRC
- FEATURE 5:RLO voltage control
- FEATURE 6:Temperature Coefficient
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, High Side Drive Regulator, 14.10 Vset
- TYPE Brush Holder
- DIST MTG HOLES 25.5
- HEIGHT 29.5
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM 279
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 13
- TYPE Slip Ring
- ID 5.8
- LENGTH LEADS 11
- LENGTH OA 46.5
- LENGTH RING 1 8.2
- LENGTH RING 2 8.2
- OD SLIP RING 14.3
Compatible Vehicles:
*Please check the year, make, model, and engine size. Thank you.
100% NEW REPLACEMENT

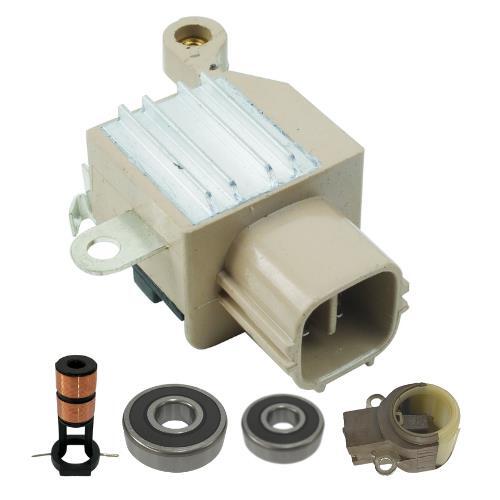

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Toyota, Lexus, and more.
Toyota
- LS460 V8 4.6L 2007-2012
Lexus
- RAV4 L4 2.4L 2006-2008
- RAV4 V6 3.5L 2006-2008
Interchange #
Regulator
IN6302, IN6322, IN6332
Brush Holder Assy
39-8206
Brushes
38-8201
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
Slip Ring, Rotor
28-82854
Lester
11201, 11322, 11322, 11323, 11323, 11328, 20226, 20226, 20226, 20359, 20490, 20538, 21418, 24104, 24114, 2411
Replaces
Denso 126600-3020, 126600-3220, 126600-3320, 126600-3800, 3020, 3220, Original Reference Number 1123-046RS, GC1M3320, GC2M3020, GC2M3220
USED ON
Lexus (2007-2012) ** Toyota (2006-2008) **
UNIT NUMBERS
Denso 104210-2080, 104210-2090, 104210-2091, 104210-2092, 104210-2180, 104210-2181, 104210-2182, 104210-2183, 104210-2300, 104210-2310, 104210-2320, 104210-2520, 104210-4590, 104210-4591, 104210-4592, 104210-4670, 104210-4740, 104210-4750, 104210-4760, 104210-4770, 104210-4771, 104210-4771, 104210-4790, 104210-4791, 104210-4792, 104210-4793, 104210-4794, 104210-4795, 104210-6130, 104210-6131, 104210-8350, 104210-8351, 104210-9240, 104210-9250, 104210-9290, 9664219-208, DAN1018, DAN1025, TG104210-9240; Lexus 27060-38040, 27060-38041, 27060-38070; Marelli 063377534010; Toyota 27060-0G021, 27060-0N040, 27060-0N050, 27060-0Q060, 27060-0T050, 27060-0T051, 27060-0Y010, 27060-0Y020, 27060-0Y030, 27060-0Y040, 27060-0Y041, 27060-26030, 27060-28300, 27060-28301, 27060-28301-84, 27060-2830184, 27060-28330, 27060-31050, 27060-31090, 27060-31091, 27060-31091, 27060-31091-84, 27060-31091-84, 27060-31100, 27060-31101, 27060-31102, 27060-33100, 27060-47050
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2012 | Lexus | LS460 | Base Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2012 | Lexus | LS460 | L Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2011 | Lexus | LS460 | Base Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2011 | Lexus | LS460 | L Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2010 | Lexus | LS460 | Base Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2010 | Lexus | LS460 | L Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2009 | Lexus | LS460 | Base Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2009 | Lexus | LS460 | L Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2008 | Lexus | LS460 | Base Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2008 | Lexus | LS460 | L Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2008 | Toyota | RAV4 | Base Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Toyota | RAV4 | Base Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2008 | Toyota | RAV4 | Limited Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Toyota | RAV4 | Limited Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2008 | Toyota | RAV4 | Sport Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2008 | Toyota | RAV4 | Sport Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2007 | Lexus | LS460 | Base Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2007 | Lexus | LS460 | L Sedan 4-Door | 4.6L 4608CC V8 GAS DOHC Naturally Aspirated |
| 2007 | Toyota | RAV4 | Base Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Toyota | RAV4 | Base Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2007 | Toyota | RAV4 | Limited Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Toyota | RAV4 | Limited Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2007 | Toyota | RAV4 | Sport Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2007 | Toyota | RAV4 | Sport Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2006 | Toyota | RAV4 | Base Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Toyota | RAV4 | Base Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2006 | Toyota | RAV4 | Limited Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Toyota | RAV4 | Limited Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2006 | Toyota | RAV4 | Sport Sport Utility 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 2006 | Toyota | RAV4 | Sport Sport Utility 4-Door | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
