DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LENGTH MOUNTING 63.5
- LRC WO /LRC
- PLUG CODE 317
- SYSTEM VOLTAGE 12
- TERMINALS C, IG, L
- VOLT SET 14.5
- MFR: DENSO
- DIM 1:63.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- NOTE 1:Active lamp function - with output
- SPECS FOR: Denso IR/IF Alternators
- SPECS:12 Volt, A-Circuit, C-IG-L Terminals, 14.5 Vset
- TYPE Brush Holder
- HEIGHT 23.7
- LENGTH OA 43.3
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM 279
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 13
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model, and engine size. Thank you.
100% NEW REPLACEMENT

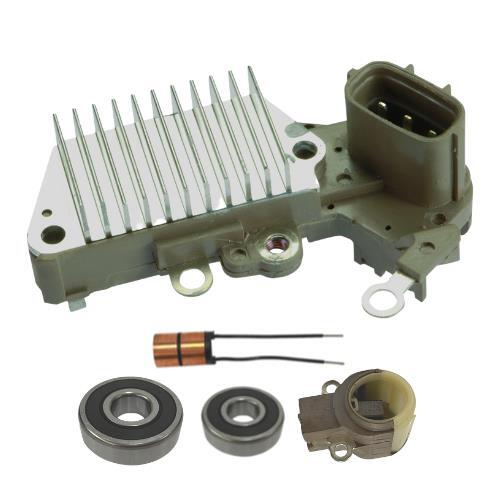

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Acura, Isuzu, Suzuki and more.
Acura
- SLX V6 3.2L 1996-1997
Isuzu
- Trooper V6 3.2L 1996-1997
Suzuki
- Swift L4 1.5L 2009-2011
Interchange #
Regulator
IN215
Brush Holder Assy
39-8203-3
Brushes
38-8201
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
Slip Ring, Rotor
28-82853
Lester
13739, 23270
Replaces
Denso 126000-2150, 126000-2151, Isuzu 8971227960
USED ON
Acura (1996-1997) ** Isuzu (1996-1997) ** Suzuki (2009-2011) **
UNIT NUMBERS
Acura 8-97109-780-1; Denso 101211-0840, 101211-4220, 102211-2600, 9761219-422; Isuzu 2901237800, 2901237801, 8971097800, 8971097801; Suzuki 31400-80G01, 31400-80G10
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2011 | Suzuki | Swift | 100 Aniversario Hatchback 4-Door | 1.5L 1490CC 91Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2011 | Suzuki | Swift | Base Hatchback 4-Door | 1.5L 1490CC 91Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2010 | Suzuki | Swift | 100 Aniversario Hatchback 4-Door | 1.5L 1490CC 91Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2010 | Suzuki | Swift | Base Hatchback 4-Door | 1.5L 1490CC 91Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2009 | Suzuki | Swift | Base Hatchback 4-Door | 1.5L 1490CC 91Cu. In. l4 GAS DOHC Naturally Aspirated |
| 1997 | Acura | SLX | Base Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1997 | Acura | SLX | Premium Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1997 | Isuzu | Trooper | LS Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1997 | Isuzu | Trooper | Ltd Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1997 | Isuzu | Trooper | S Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1996 | Acura | SLX | Base Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1996 | Acura | SLX | Premium Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1996 | Isuzu | Trooper | LS Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1996 | Isuzu | Trooper | S Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
| 1996 | Isuzu | Trooper | SE Sport Utility 4-Door | 3.2L 3165CC V6 GAS SOHC Naturally Aspirated |
